Ingersoll Rand BW035080 | 350 Lb Capacity Pneumatic Balancer

BW035080

Ingersoll Rand BW035080 | 350 Lb Capacity Pneumatic Balancer BW035080
BALANCERS
Price: 3512.04 CAD In stock

Ingersoll Rand BW035080

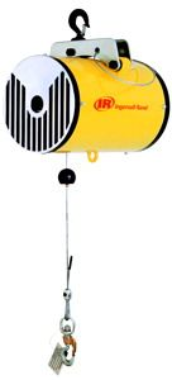

350 Lb Capacity Pneumatic Balancer

The Ingersoll Rand "B" series balancers come standard with NO CONTROLS, and are designed for integration with an end effector or handling device that includes a control package.

Features
  • Safety - If the air supply is ever interrupted, the unit will maintain the load in the suspended position
  • Standard emergency cable retract brake - If the load is accidentally lost, a spring loaded centrifugal brake automatically stops the rapid upward cable travel
  • Standard overload protection - The load being lifted can never exceed the unit’s maximum rated capacity at a given air pressure
  • Optional down stop - Eliminates the down-drift of suspended loads within 6 inches (152 mm) if air supply is shut down
  • Cable travel - Length of wire rope up to 30 ft (9.1 m) with cable travel up to 120 inches (3048 mm) depending on model and configuration
  • Suspension kits - Suspension kits are available for virtually all enclosed track manufacturers, as well as I-beam, Patented/Hardened track, and Hook mounted configurations



Technical Specifications:
Capacity350 lbs
Diameter10
ManufacturerIngersoll Rand
Weight62 lbs
Manufacturer Part NumberBW035080
Stock CodeB
Diameter10 in
Capacity @ 100 PSI350 lbs.
Vertical Travel80 in
Brand:INGERSOLL RAND
